Introduction
Founded in Serbia in 1990, ABC has been committed to delivering high-quality wood heat to its customers for over thirty years. ABC’s production facility features cutting edge modern technology including robotic welding, laser cutting, and automated powder coating, demonstrating a level of precision craftsmanship that is unrivaled in the cook stove industry. Obadiah’s Woodstoves has even visited their facility to see their work first-hand and meet their extraordinary, hard working team. ABC is a brand Obadiah’s has trusted for many years and we believe in their products.
ABC Concept 2 Air Wood Cook Stove
The Concept 2 Air Wood Cookstove is designed as a modern-day cooking and baking stove, utilizing solid fuel in the form of dry wood, coal or briquettes. With its deep firebox and large glass door, the Concept 2 Air practically feels like a regular woodstove even though it is not a certified residential wood heater.
We enjoy how the Concept 2 Air blends a classic and contemporary style: Thanks to ABC’s cutting-edge manufacturing technology, this stove fits in perfectly whether it’s for a cozy living room or a sleek modern kitchen, and even includes a firewood drawer for convenient storage.
The Concept 2 Air is designed specifically for cooking, which is effortless thanks to the dual airflow controllers. Bake a pizza, make a hearty breakfast on the cook-top, or put together a full family meal, the Concept 2 Air can handle just about any cooking demands you have.

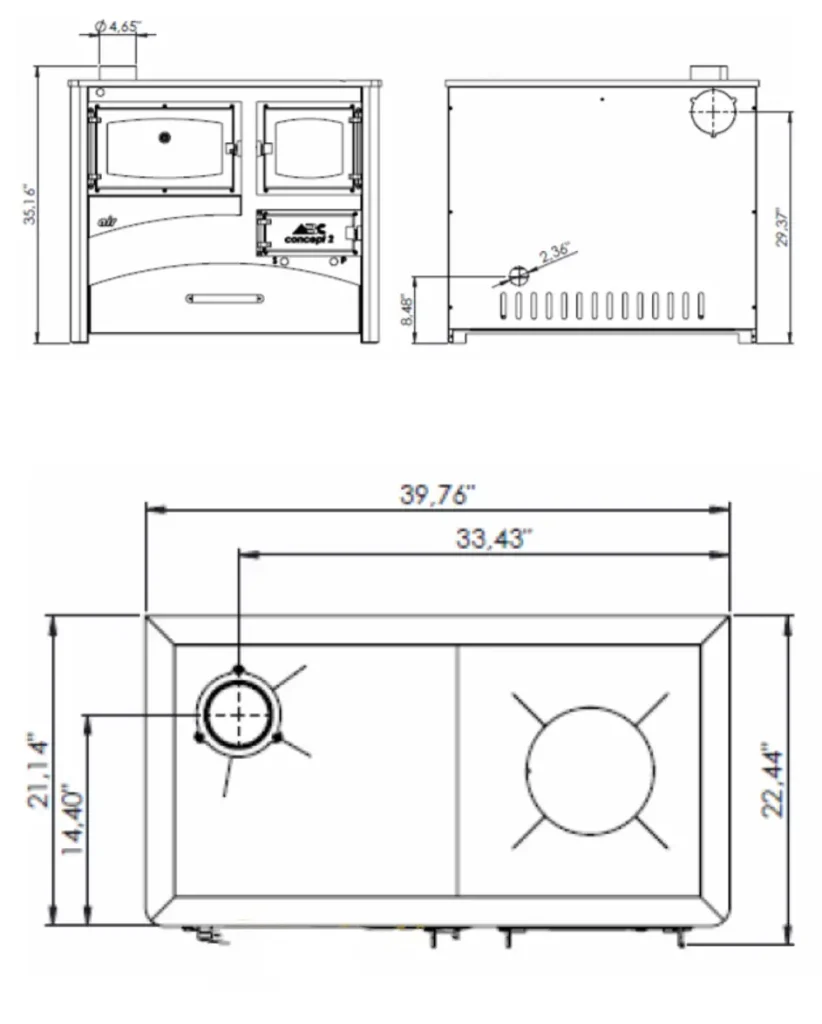

ABC Concept 2 Air Wood Cook Stove Specifications
|
Dimensions |
33.5″ H x 39.75″ W x 21″ D |
|
Oven Dimensions |
9.1″ H x 16.5″ W x 16.1″ D |
|
Firebox Dimensions |
13″ H x 11″ W x 12.25″ D |
|
BTU Output |
17,000 – 42,000 |
|
Weight |
418 lbs. |
|
Flue Outlet |
6″ |
|
Minimum Chimney Height |
16′ |
|
Fuel |
Wood or Coal |
|
Efficiency |
85% |
|
Clearances |
Double wall black stove pipe must be used to meet the clearances show under specifications. |

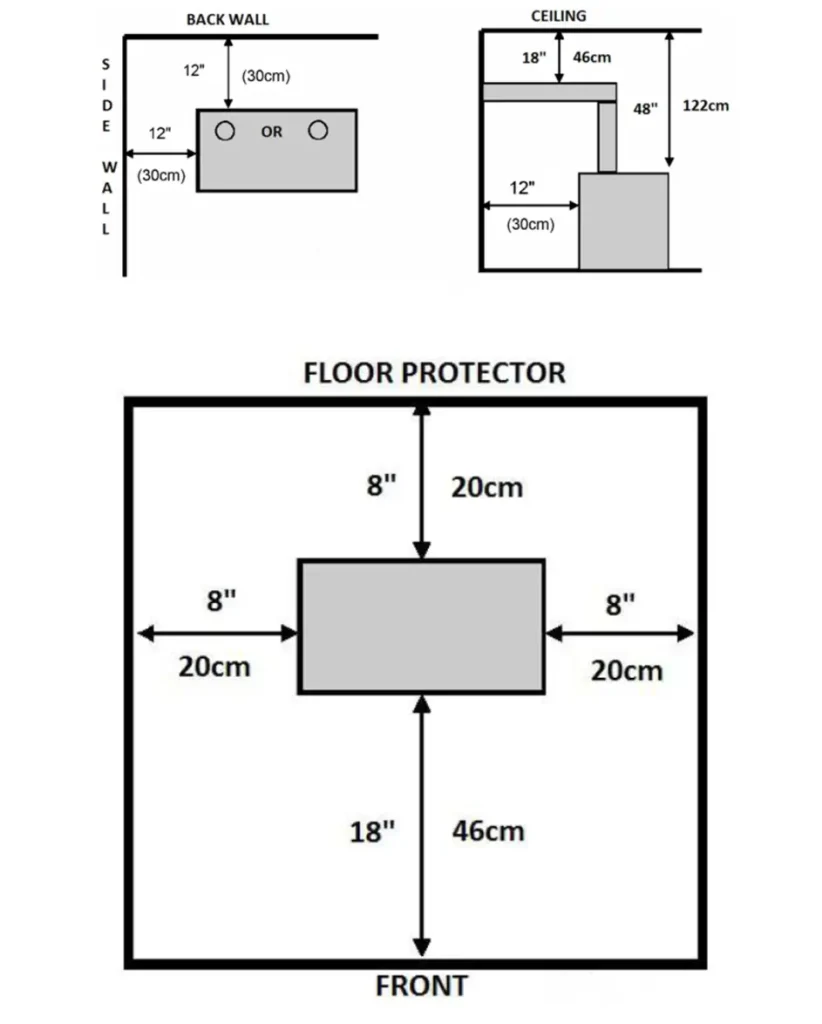

Clearance To Combustibles (Concept 2 Air)
Photos
ABC Concept 2 Air Max Hydro
The ABC Max Hydro wood cook stove blends all of things we love about the standard Concept 2 with the ability to operate as a central heating system. The Max Hydro does this via a hydronic boiler system that creates hot water, whicch can then be plumbed into hydronic heating systems including radiant in-floor heating, wall radiators, or baseboard.
The Max Hydro is one of only three wood cook stoves on the North American market that offers direct hydronic heating, and it’s exceptionaly well-built (rated to burn both wood and coal). We always recommend consulting with a local certified plumber before installation, and please keep in mind that the Max Hydro does not have an outside air intake option like the standard Concept 2 does.

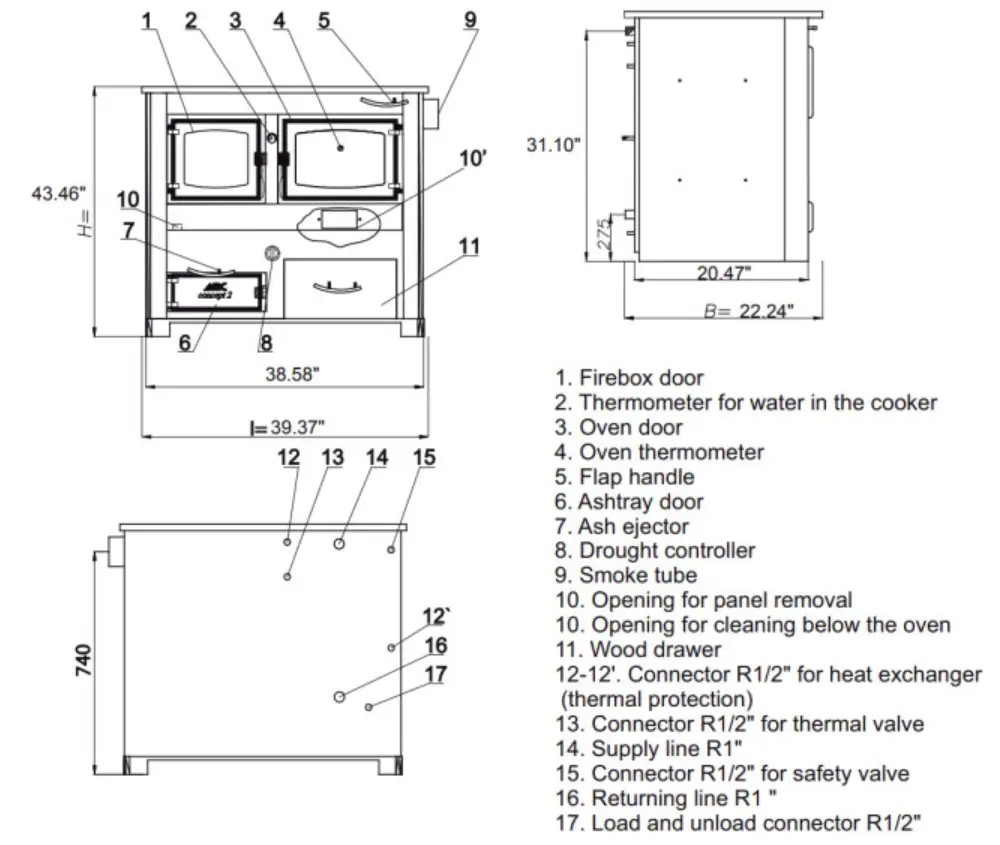

ABC Concept 2 Air Max Hydro Specifications
|
Efficiency |
80.7% |
|
Total Heat Output |
85,650 BTUs |
|
Heat Output to Air |
13,650 BTUs |
|
Heat Output to Water |
72,000 BTUs |
|
Overall Dimensions |
33.46″H x 39.37″W x 22.24″D |
|
Weight |
485 lbs |
|
Flue Diameter |
5.9″ |
|
Required Draft (Pa) |
20 |
|
Max Operating Temperature (°C) |
90 |
|
Max Operation Pressure (Bar) |
2.5 |
|
Boiler Capacity |
8.45 gal. |
|
Oven Dimensions |
9.05″H x 13.78″W x 16.14″D |
|
Technological Connections |
1/2″ |
|
Supply Line |
1″ |
|
Return Line |
1″ |
|
Firebox Dimensions |
13″ H x 11″ W x 12.25″ D |

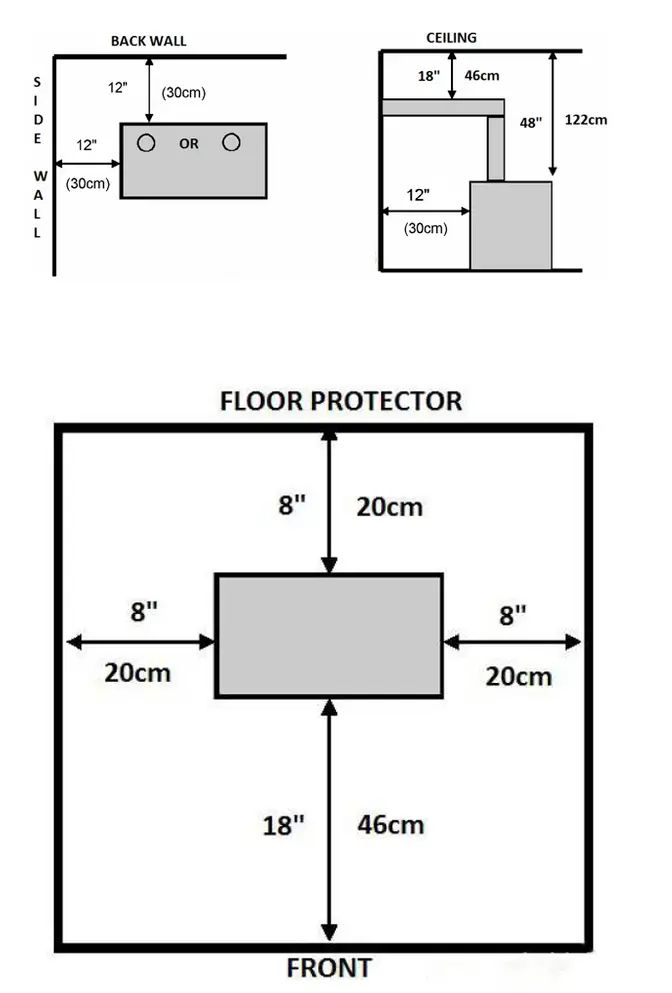

Clearance To Combustibles (Air Hydro)
Photos

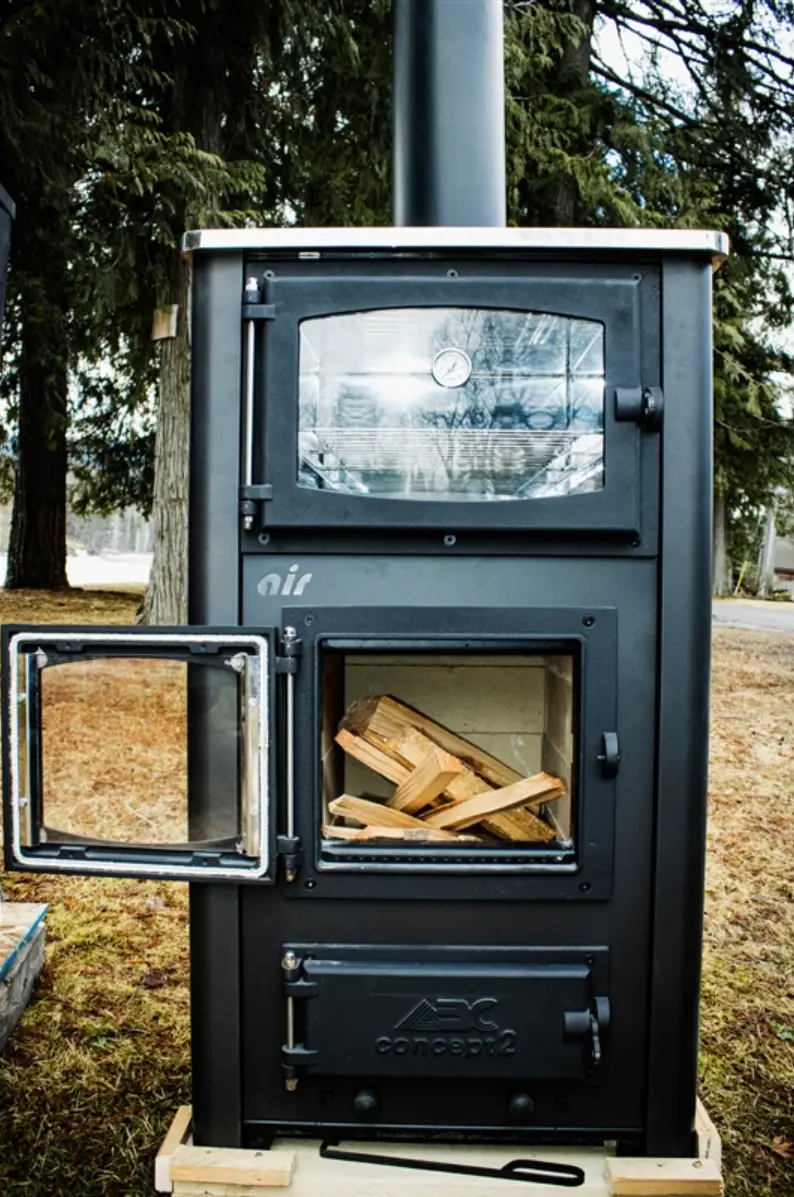

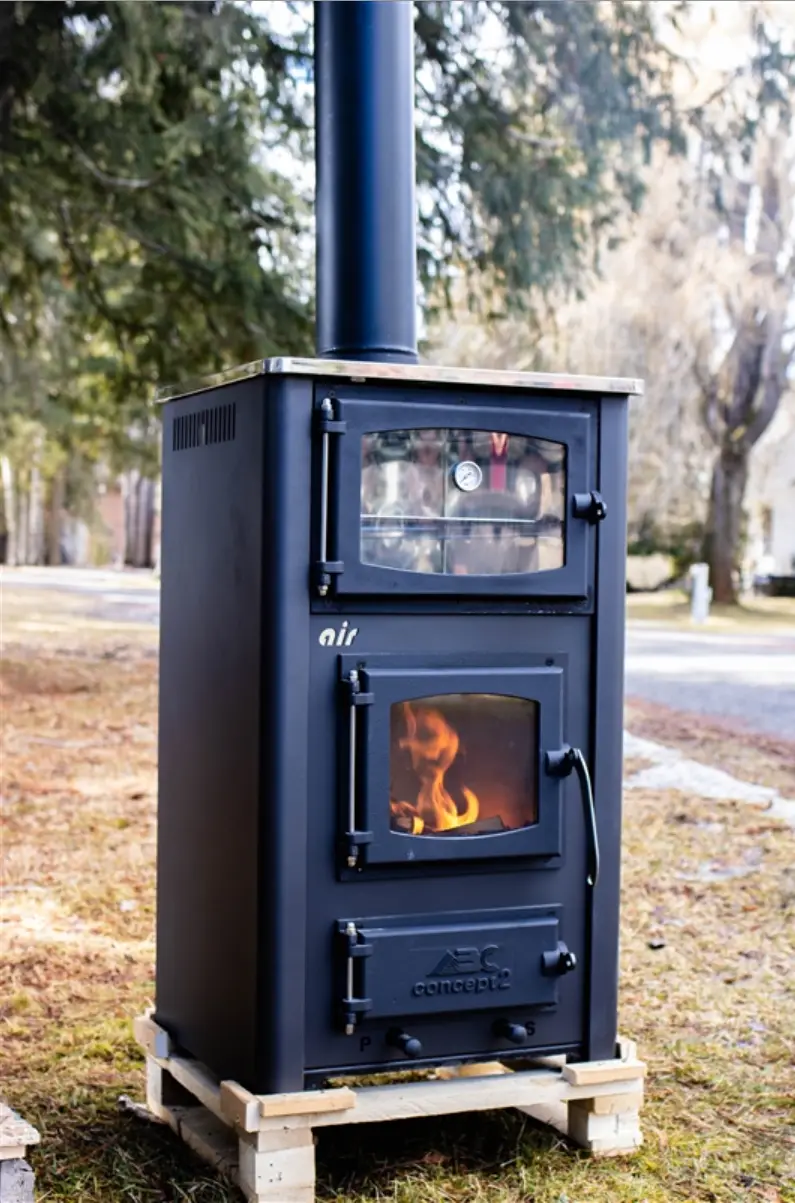

ABC Concept 2 Air Mini Wood Cook Stove
The Concept 2 Air Mini is the smallest in ABC’s Concept 2 line of wood cook stoves. As a stacked-style stove, the Air Mini can conveniently fit into a wide variety of spaces and is an ideal option for vacation homes, cabins, or any kitchen with a limited area.
Despite its smaller size, the Air Mini is an incredibly efficient cook stove, rated at 85%, and throws an exceptional amount of heat for its size in the form of 35,000 BTUs. The firebox even offers a large glass viewing area, maximizing the cozy ambience it can provide to any room.
Cooking on the Air Mini is a breeze as it features the same dual air flow controllers that the Concept 2 does. If you’re concerned about size being a limiting factor, don’t worry: Obadiah’s customers report that they’ve been able to cook a whole Christmas turkey in the oven, and the stove top is perfect for a pot of soup.

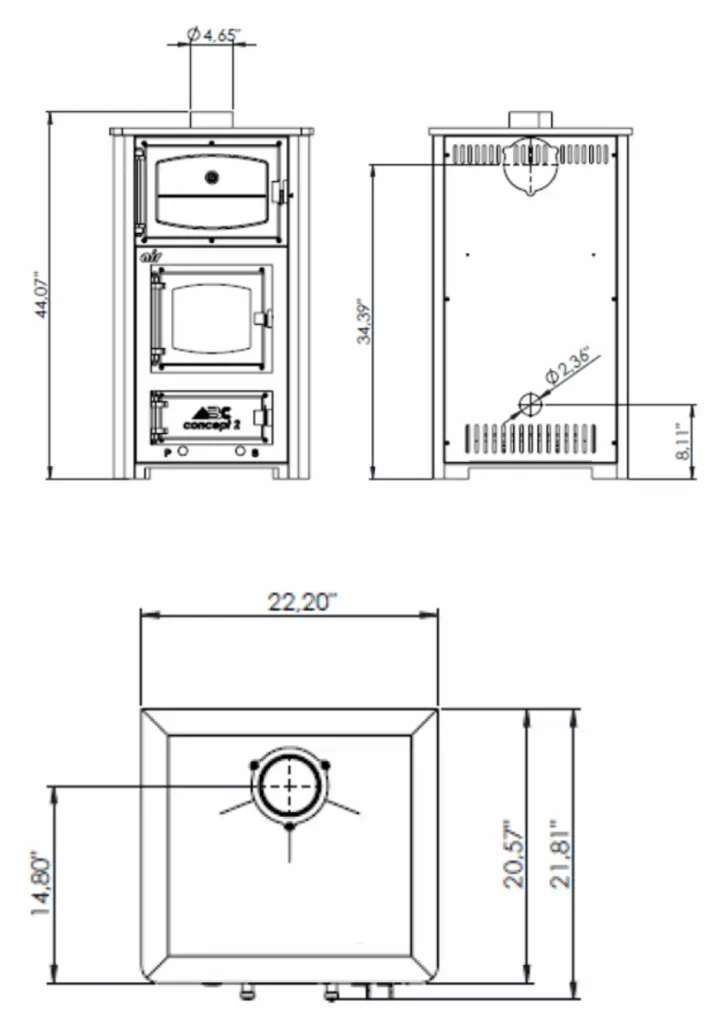

ABC Concept 2 Air Mini Specifications
|
Dimensions |
38.4″ H x 22.25″ W x 20.5″ D |
|
Oven Dimensions |
9.25″ H x 16″ W x 13.5″ D |
|
Firebox Dimensions |
13.5″ H x 10.75″ W x 12″ D |
|
BTU Output |
35,000 |
|
Weight |
341 lbs. |
|
Flue Outlet |
6″ |
|
Minimum Chimney Height |
16′ |
|
Fuel |
Wood or Coal |
|
Efficiency |
85% |
|
Door Gasket Size |
14/14mm Fiberglass Gasket |
|
Clearances |
Double wall black stove pipe must be used to meet the clearances show under specifications. |

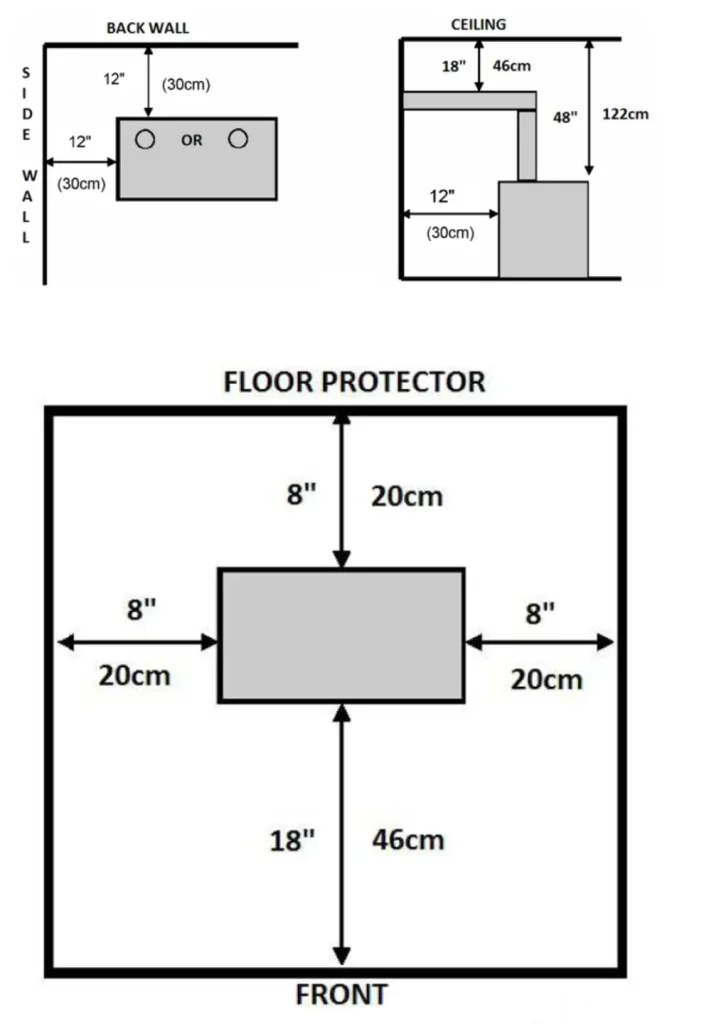

Clearance To Combustibles (Concept 2 Air Mini)
Photos
